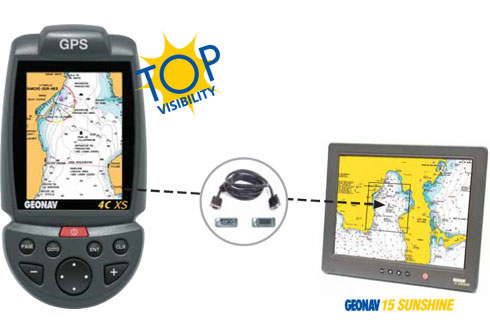

The GEONAV 4C XS (X-Screen), featuring an SVGA output port, is a special version of the GEONAV 4C. Its 12-pin connector allows repeating the display of Navionics Gold marine charts on any SVGA standard monitor.
The area shown on the monitor is much larger than that on the handheld unit. The image can also be repeated on more screens, thanks to the use of a video splitter (not included). The GEONAV 4C XS comes with user�s guide, 4 rechargeable batteries, one VGA cable, one 12-to-10 pins adapter cable (that allows using all the GEONAV 4C accessories), one cable with car lighter plug adapter and one bracket.
By using the Navionics Gold Land&Sea charts, the GEONAV 4C XS can even work as an automotive navigator.

* Compatible with any LCD or CRT multisync monitor with SVGA input (800 X 600 pixel resolutions).



Packaging content
P1016330 VGA cable
P1017890 10-12 Pin adapter
P1017920 Power line filter & fuse
P0016850 Rechargeable battery pack
P2010420 Batteries holder back
P2010430 Cradle
P1015870 Cigarette lighter plug power cable
P2011520 Carrying case
  Manual

Separate Accessories
P2010700 Car speaker and power supply
P2010680 Suction cup bracket for car mounting
P2010750 Bike adapter
P1015850 USB Cable
P0017240 Car GPS antenna
P1015860 NMEA and power cable
P1018761 straight NMEA cable
P1016390 Boat bracket
P1019520 220V adapter Hirose
P2011650 Stainless steel pipe bracket (25/35 mm)



ATTENTION
All routes, tracks and markers present in the marine mode will be lost if not previously saved on Compact Flash


DISPLAY
Resolution: 240 x 320 pixels
Color LCD, transflective, TFT 3.5�, 100% sunlight visible, backlit

TECHNICAL DATA
Built-in GPS antenna, 12 WAAS-EGNOS parallel channels
Built-in world map
Cartography: Navionics Land&Sea, Navionics Platinum,
Navionics Land&Sea Platinum
NMEA connection (IN-OUT)
SVGA connection for monitors with 800x600 resolution at 74 Hz
Size: mm 85x164x45
Waterproof / Watertight (IPX 7)
Panel or bracket mounting
Portable

MAIN FUNCTIONS
Visual Anchor Alarm
Autozoom�
Easy View
Own ship position window
Runway window (XTD)
Tide & currents data
GOTO port, marker and service functions
Overzoom
Power saving mode
Chart rotation
Screen Amplifier�

MEMORY
Unlimited number of markers, routes and waypoints
saved on the CompactFlash� cartridge

POWER SUPPLY
Powered by external power source or by 4 rechargeable batteries
Power supply: 9�18 V
Built-in battery charger
Power consumption: 2.2 W
Protection against overvoltage and reverse polarity
Protection against overheating

STANDARD ACCESSORIES
4 rechargeable batteries
Power supply cable with video output
12-to-10 pin adapter cable
Cradle
Carrying case
User and Installation Guide
Power Line Filter & Fuse



STAND-ALONE ACCESSORIES
220 VAC adapter
Bike mount bracket
GPS antenna for car
Power supply cable with car lighter plug
NMEA cable
USB cable
Speaker with car lighter plug
Suction cup bracket for car mounting
Bracket for boat mounting

WARRANTY
2 years

PRODUCT CODE
NAV70101
